Silence type break hammer

Quantity:

BREAK HAMMER-BOX TYPE SERIES www.farsee-tech.com
	1.Description:
	FEATURE: 1. Top-mounted, suitable for top-mounted on excavators for crushing operations. 2. The upper rotating head can be replaced, and the versatility is good. 3. The overall length is long and the crushing distance is long. 4. Ring closed structure, low noise. 5. Excellent comprehensive mechanical properties, high strength and high impact toughness. 6. Selected high-quality special alloy steel, high-precision CNC machining, special multi-channel thermal process
	2.Specifications:
	Description	Model	Suitable Excavator	chiesel diameter /length（mm)	Chisel weight(kg)	worknig Flow(L/min)	working pressure(bar)	working Weight (kg)
	BREAK HAMMER (Box type)	Fs068B	4-7ton	68/700	21.5	40-70	110-140	343
		Fs075B	6-9ton	75/750(710)	31	50-90	120-150	477
		Fs080B	6-9ton	80/755	34
		Fs085B	7-14ton	85/850(745)	38	60-100	130-160	658
		Fs100B	11-16ton	100/1000(1055)	72.3	80-110	150-170	935
		Fs120B	15-21ton	120/
		Fs125B	15-21ton	125/1100(1130)	119	90-120	150-170	1446
		Fs135B	18-26ton	135/1300(1200)	146	120-180	160-180	1669
		Fs140B	18-26ton	140/1300	170	120-180	160-180	1849
		Fs150B	27-33ton	150/1400(1300)	194	150-210	160-180	2550
		Fs155B	28-35ton	155/1400(1500)	238	180-240	160-180	2643
		Fs160B	30-40ton	160/
		Fs165B	30-40ton	165/1500	269	200-260	160-180	3248
		Fs175B	35-45ton	175/1500(1600)	322	210-290	160-180	3593
		Fs185B	45-55ton	185/1600	358	280-350	165-185	4844
		Fs195B	50-70ton	195/1700(1760)	408	280-350	170-195	5374
		Fs210B	60-80ton	210
		Fs230B	80-120ton	230
		Fs248B	90-140ton	248

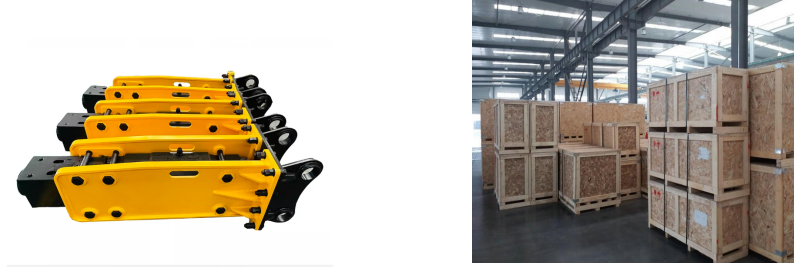

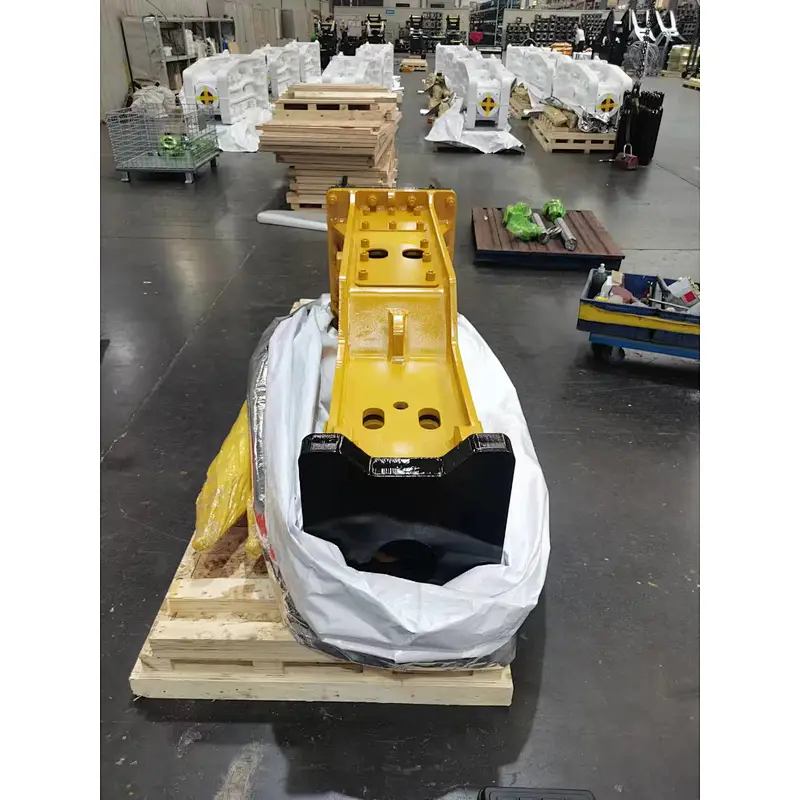

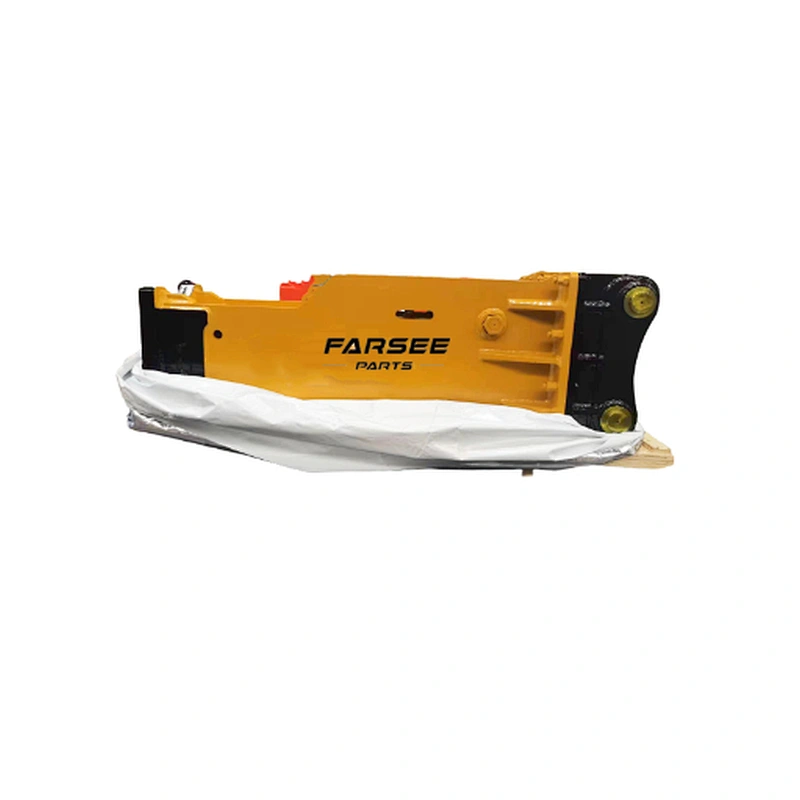

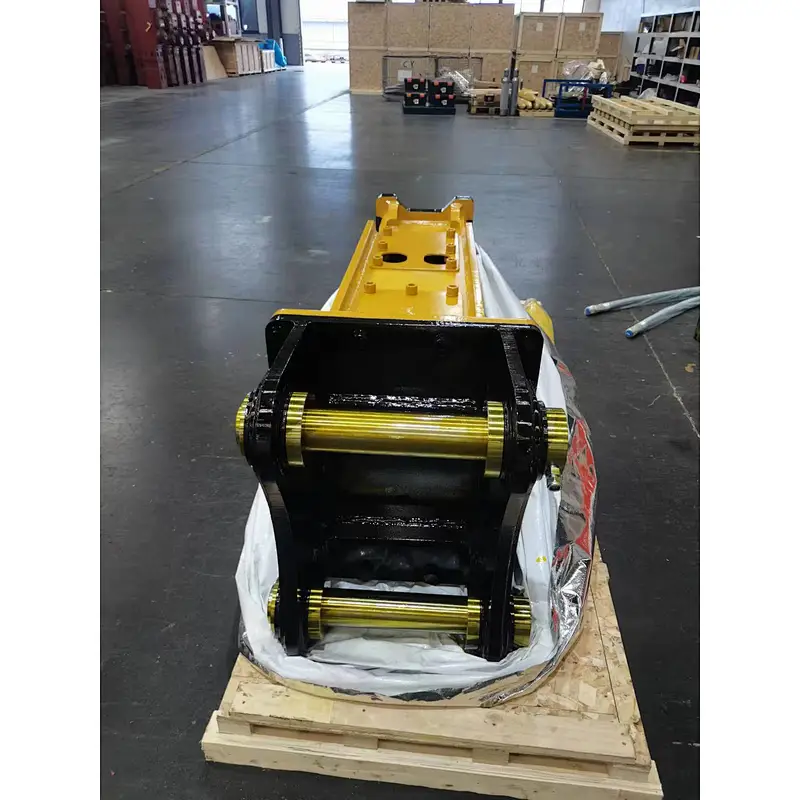

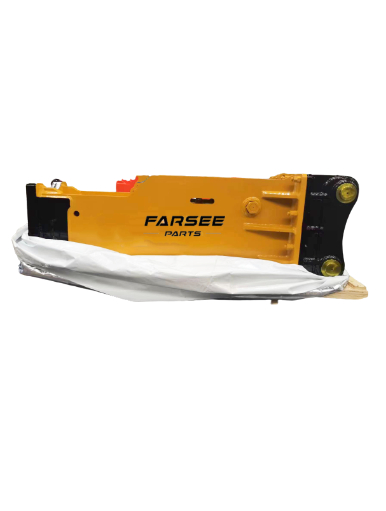

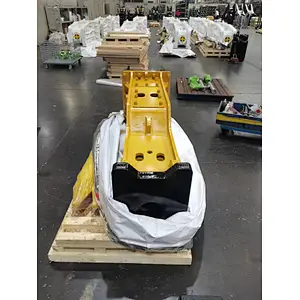

	3.Picture
