Hydraulic Vibro Ripper

Model NO.: FEVS2025 FEVS2326 FEVS2532 FEVS3235 FEVS3640 FEVD3050 FEVD4555 FEVD5060 FEVD7090 FEVT5060 FEVT7090

Quantity:

Product Description

FARSEE TECH HYDRAULIC VIBRO RIPPER SERIES Web:www.farsee-tech.com
	1.Product Features:
	1.Combined with the advantages of hydraulic hammer and Scarifier, the seismic frequency ranges from 1500 to 3200 times per minute, greatly improving the crushing efficiency 2.In the process of crushing a single point, high-frequency vibration impact is used to destroy the surrounding structure, which can reach the cubic effect of 3-5 times of piston hydraulic hammer in applicable working conditions 3.Can be used for underwater operation or high temperature operation below 80 degrees without refit. 4.Low noise and easy maintenance,itle damage to the main engine, tiuge pollution to the hydraulic system of the machine
	2.Specifications：
	Item	HYDRAULIC VIBRO RIPPER
	Item	FEVS2025	FEVS2326	FEVS2532	FEVS3235	FEVS3640	FEVD3050	FEVD4555	FEVD5060	FEVD7090	FEVT5060	FEVT7090
	Motor No.	single motor					double motor				three motor
	Power/KW	60	68	79	95	120	140-180	180-200	160-200	190-230	260	290
	Operating weight/KG	3000	3600	3800	4300	5000	5500	6200	6500	7600	8500	9500
	Motor/CC	80	90	108	125	160	90*2	108*2	90*2	108*2	90-108	108-108R
	Oil flow/ L/min	144-180	160-200	190-220	225-250	288-295	295-324	410-440	360-400	420-460	410-460	450-500
	Operating pressure/bar	250	250	250	250	250-260	250-260	250-260	250-280	250-280	260-280	260-280
	Impact power/KN	251	286	300		430	450	491	468	599	1500	1800
	Impact rate/HZ	25-35	25-35	25-35	25-35	25-35	25-35	25-30	25-30	25-30	28-35	28-35
	L/mm	2300	2700	2700	2800	3100	3400	3685	4500	4800	4200	4600
	W/mm	950	1200	1200	1250	1250	1207	1246	1300	1300	1350	1450
	H/mm	1350	1500	1500	1550	1650	1780	1815	1650	1850	1850	1950
	Hose size/inch	1-1/	1	1	1	1-1/4	1-1/4	1-1/4	1-1/4	1-1/4	1-1/2	1-1/2
	Suitable excavator/T	20-25	23-26	25-32	32-35	36-40	30-50	45-55	50-60	70-90	50-60	70-90

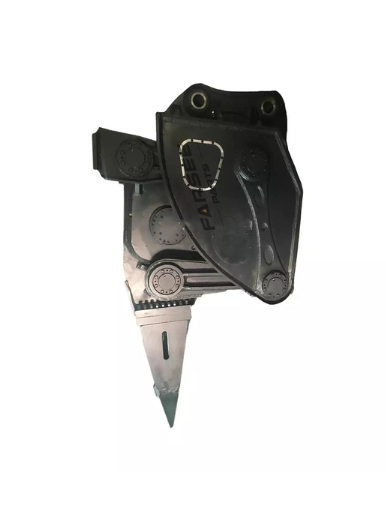

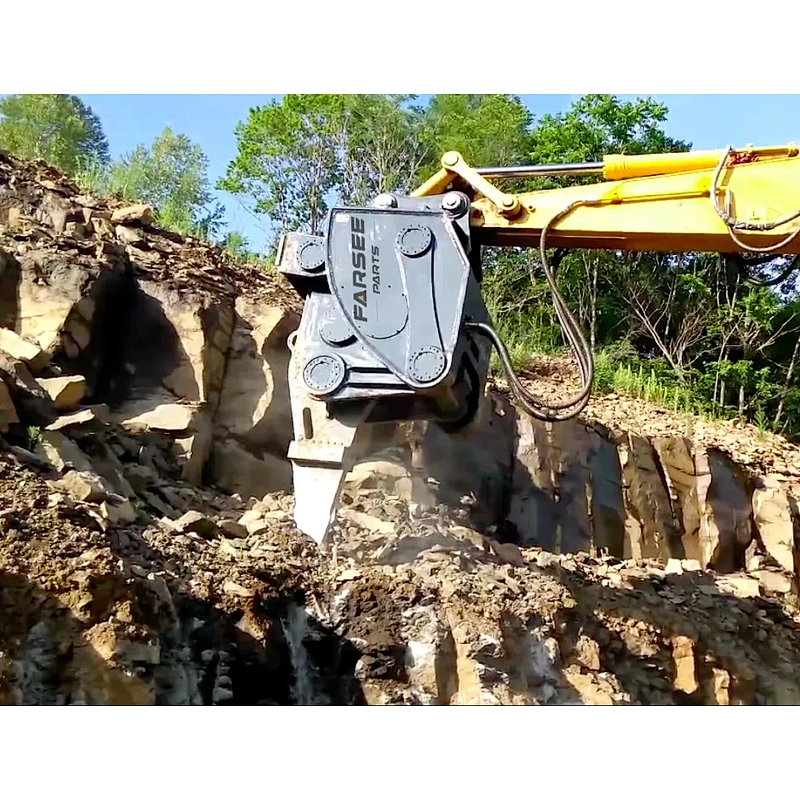

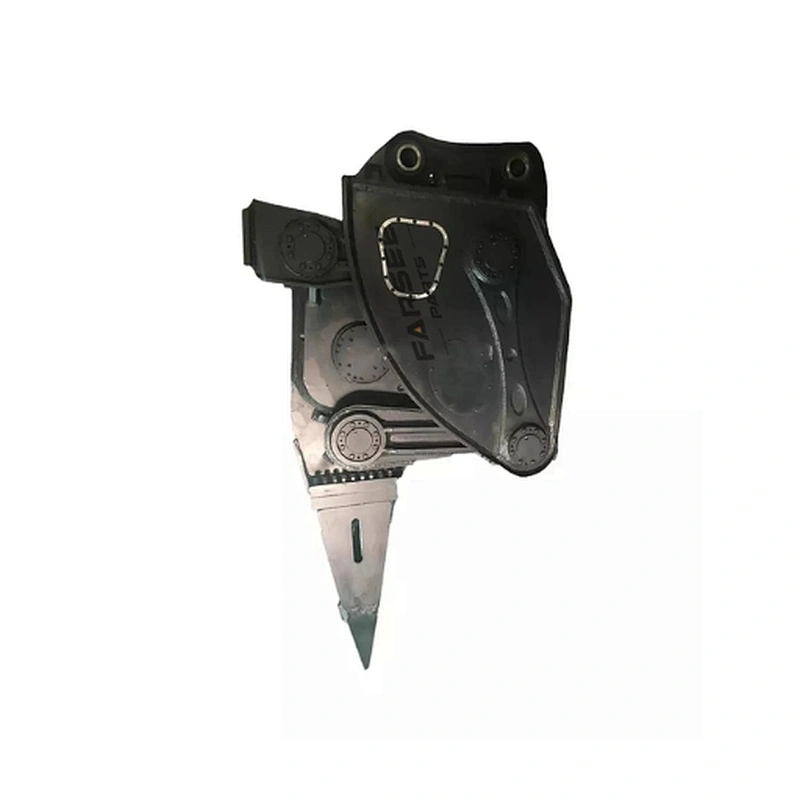

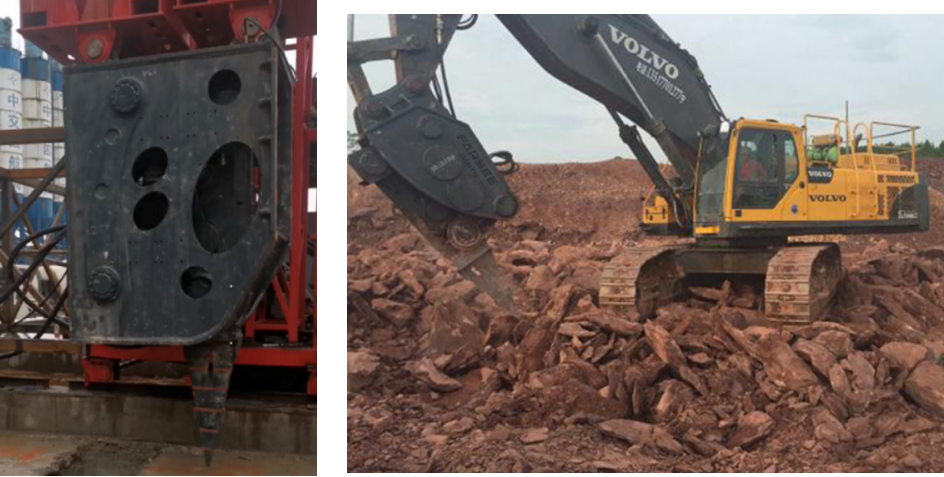

	3.Pictures:
