The hydraulic shear series products are made of strong steel, ensuring the strength and wear resistance of the tool, aiming to reduce any side twisting or bending, jaw size and replaceable blade design to improve productivity. All the hydraulic shear series can quickly and easily replace the blades, which can reduce the downtime of mechanical failures and optimize productivity. The powerful hydraulic cylinder strengthens the closing force of the jaws to cut harder steel.

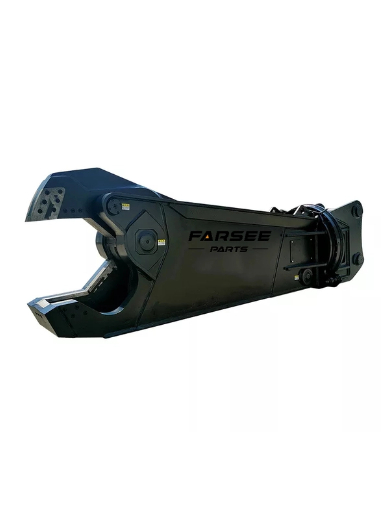

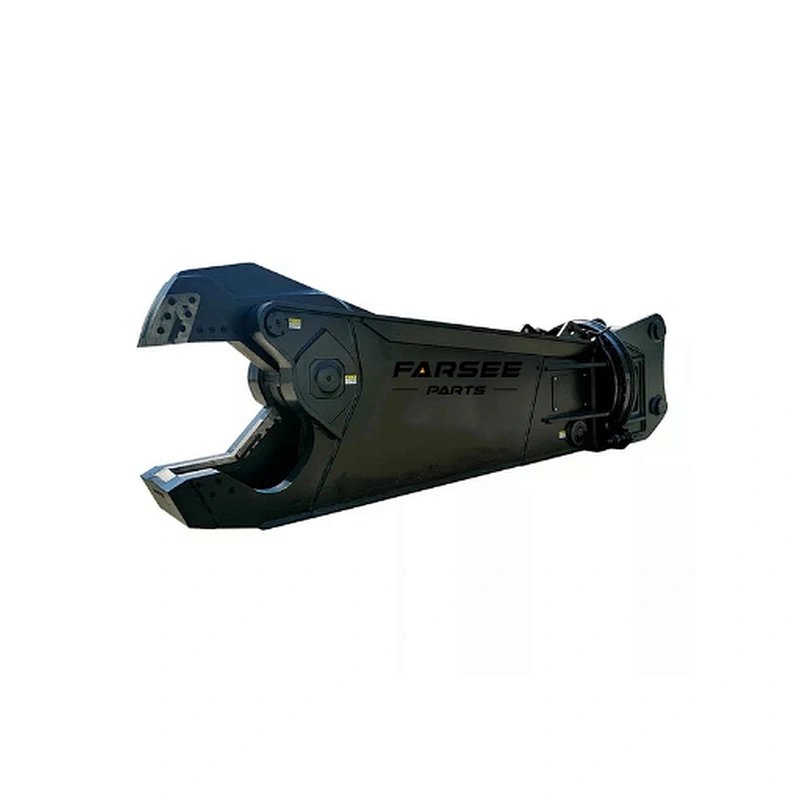

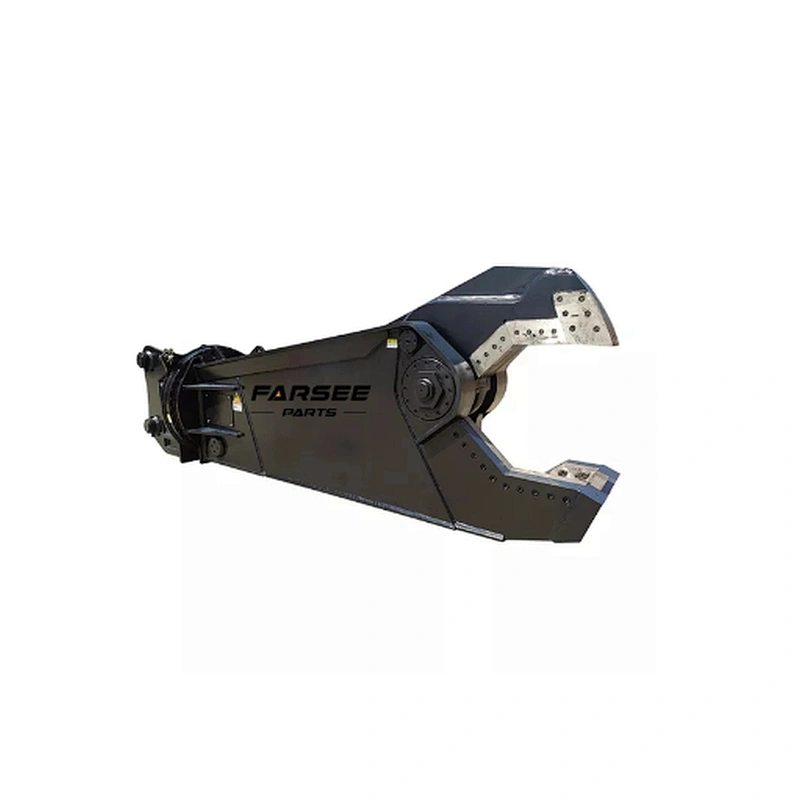

2. 1)Eagle shear:

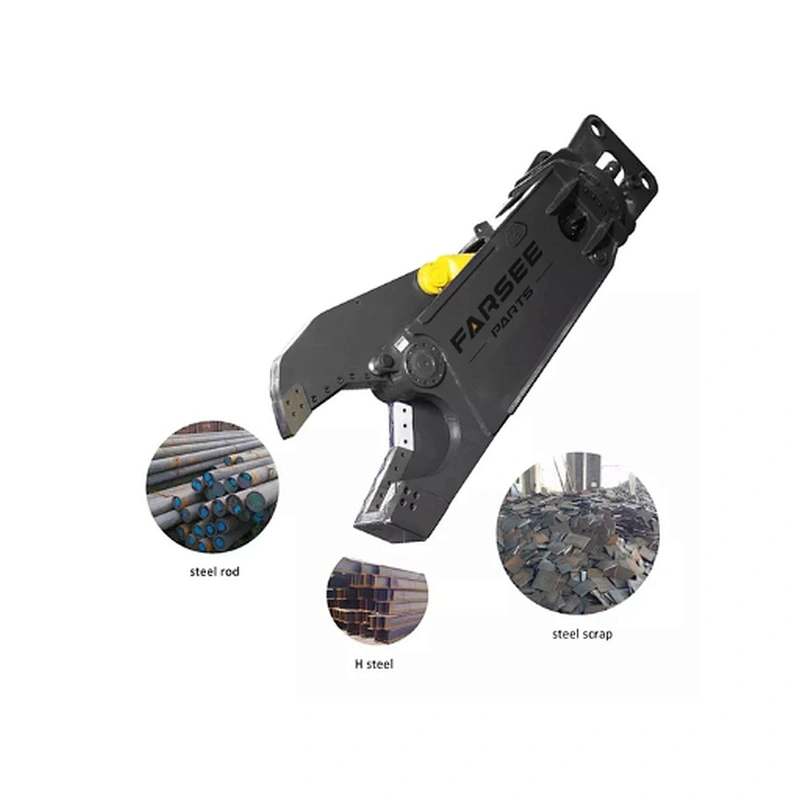

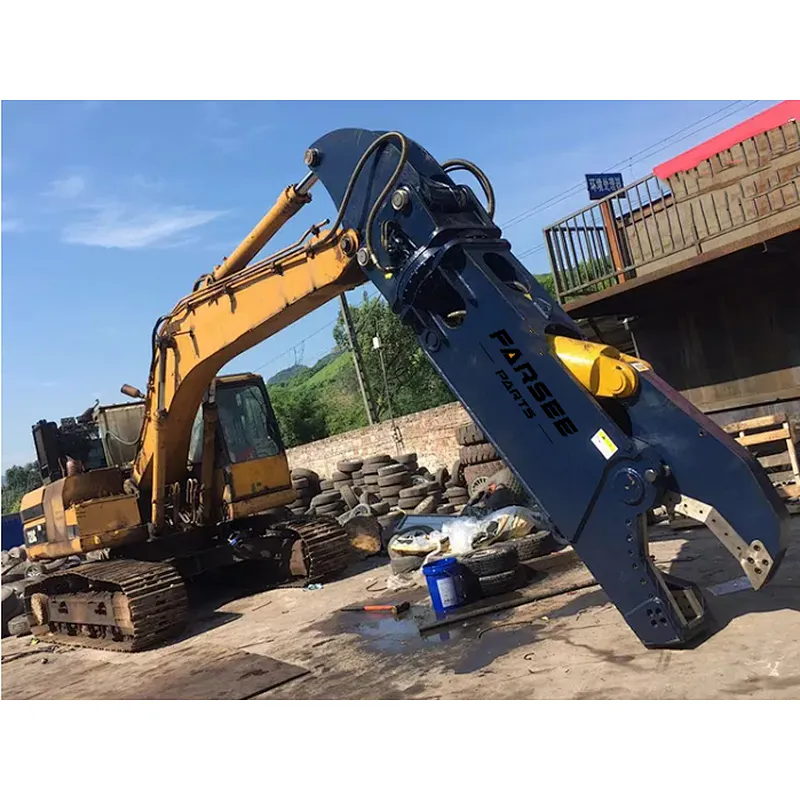

Application: Farsee's Hyrdaulic Eagle shear is suitable for different working conditions, including steel structure demolition, leather steel processing, car demolition, aircraft demolition, ship demolition and other applications. Can cut iron materials, H steel, tanks, pipes, cables, cars, planes, etc.
Item
Hyrdaulic eagle shear
FEE0612
FEE1020
FEE2030
FEE3545
FEE4050
Max oil pressure/Mpa
32
32
32
32
32
Max Opening width/mm
206
350
450
600
800
L*W*H/mm
1950*450*520
2500*600*750
2800*700*1000
3370*800*1200
3900*880*1350
Weight/KG
700
1300
2300
3150
4900
Suitable excavator /T
6-12
10-20
20-30
35-45
40-50
.
.
.
2)Car dismantling shear:
Application:This Car dismantling shear is suitable for different car dismantling and can cut iron materials, steel, cans, pipes, etc.
Farsee number
Opening width/mm
Max oil pressure/Mpa
L*W*H/mm
suitable excavator /T
weight/KG
FED1215
540
32
2270*600*980
12~15
1310
FED1520
730
32
2765*780*600
15~20
1900
Farsee number
Opening width/mm
Cutting force/KN
Closed working pressure/ KG/cm2
suitable excavator /T
Weight/KG
Rotary oil flow/LPM
Closed working flow/lpm
Rotary working pressure KG/cm2
FED2030
660
1950
300-350
20~30
2000
40-60
180-240
120-160
3)Hydraulic Pulverizer :
Application : Farsee Hydraulic Pulverizeris secondary demolition equipment, and only saw teeth with a large ruler. Using the edge teeth to crush the material, it has the ability of strong crushing and rapid decomposition of reinforced concrete; it is specially designed for the demolition of buildings such as buildings, apartments, workshop beams and columns, so as to achieve the effect of complete crushing.
Farsee number
Max oil pressure/MPA
Max opening size/mm
Breaking force/Ton
Total length/mm
Total weight/KG
Suitable carrier/Ton
FEQ0408
26
415
50
1200
390
4-8
FEQ0815
32
542
60
1400
700
8-15
FEQ1218
32
600
60
1500
1000
12-18
FEQ1825
34
820
79
1800
1620
18-25
FEQ2535
34
1075
100
1950
1850
25-35
FEQ3545
34
1075
115
2550
2850
35-45
4)Hydraulic Cutter :
Application : Excavator multi-functional hydraulic cutter is the ideal tool in the rescue process. Double oil cylinder body is equipped with a variety of different structure of jaw, realizing the separation, shearing, removing in the rescue process, making the rescue higher working efficiency. Double oil cylinder is with large opening design, so the work is easy,convenient, flexible operation, and ensure powerful motivation of equipment, work efficiency is two to three times of broken hammer,fully mechanized, safe and saving time.
